RFID Smart Checkout Station ING-WS010
RFID Smart Checkout Station ING-WS010
  1. RFID Smart Checkout Station ING-WS010
  2. RFID Smart Checkout Station ING-WS010

RFID Smart Checkout Station ING-WS010

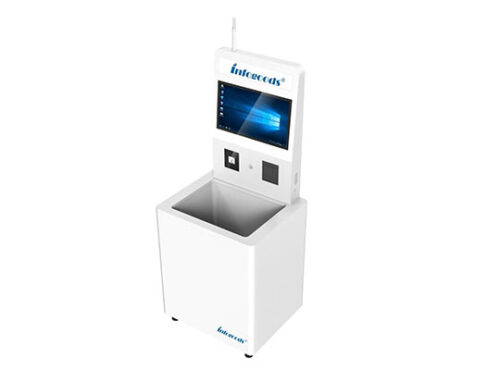

ING-WS010 RFID Smart Checkout Station is a self-service checkout device for retail stores, independently developed by our company. Featuring a stylish design, it integrates a 21.5-inch LCD screen with responsive buttons and a fast-reacting system. Working in conjunction with server and cloud-based data systems, it enables rapid checkout of goods. The device is also equipped with a receipt printer, allowing real-time printing of current transaction orders for customer verification.

Category:

Product Features

  • Hexa-core high-performance processor for faster system response.
  • 5-inch LCD screen with high-definition display, LED backlight for ultra-low power consumption and longer lifespan.
  • Integrated 10-point capacitive touch panel with tempered glass cover, ensuring sensitive touch operation and effective scratch resistance.
  • Simple and intuitive software interface, enhancing the customer shopping experience.
  • High-efficiency thermal receipt printer for seamless human-machine interaction.
  • High Read Rate: Advanced tag collision handling algorithm ensures fast and efficient reading.
  • Compact Design: Easy to install and deploy.
  • Communication Interface: TCP/IP (RS485/422 interface available for customization).
  • Transmit Power: 0dBm ~ 33dBm, adjustable, factory default set to 30dBm.

Product Specifications:

System Configuration:

CPU:Uses Rockchip RK3568 (Cortex-A55x4) quad-core processor, equipped with Android 11 system, main frequency can reach up to 2.0GHz

GPU:Built-in Deep Neural Network Unit (NPU), performance up to 1TOPS

RAM:4GB

Flash:32GB

OS:Android 11

RFID:

Operating :Frequency: 902.00MHz – 928.00MHz

Antenna Mode: Distributed

Antenna Interface: SMA x 4

Transmission Power: 0~30dBm

Boundary Recognition Distance at Skyline: ≤8cm

Tag Reading Distance: 50cm

Supported Protocol Types: EPCglobal UHF Class1 Gen2 / ISO18000-6C

Printer:

Printing Method:  Line Thermal Sensitive

Printing Density: 8 dots/mm 576 dots/line

Printing Direction: Paper Feed Direction

Printing Speed: 150mm/s (Max)

Printing Paper Width: 79.5±0.5mm

Effective Printing Width:  72mm

Outer Diameter: φ80mm (Maximum)

Paper Tray Width: 80mm

Printing Characters: Western Character Set: 12×24 dots, 1.5 (width) × 3.00 (height) mm; Chinese Character Set: GB18030 Character Set 24×24 dots, 3.00 (width) × 3.00 (height) mm

Scanner:

1D: UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN/ISSN, Code 39, Full ASCII Code 39, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Codabar, Code 128, UCC/EAN128 (GS1-128), ISBT128, Code 93, Code 11, MSI/Plessey, UK/Plessey, China Post Code, GS1 DataBar Family (RSS Family)

2D: PDF417, MicroPDF417,QR Code,Micro QR Code,Data Matrix,Han Xin Code,Aztec Code,GS1 Composite Code

Stiucture:

Overall Dimensions: 700 * 590 *1720mm (±5mm)

Packin: Gravity Carton Conveyor

Net Weight(kg): 95KGS
