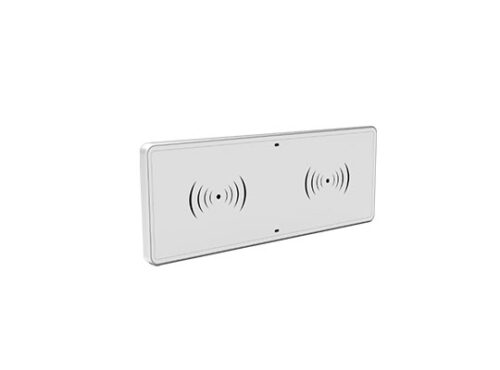

The ING-AC030 is a high-performance, UHF ceiling-mounted all-in-one device. Stylish and elegant, it’s easy to install and easily adapts to project scenarios with a choice of mounting brackets. Equipped with a built-in directional circularly polarized antenna and based on the Impinj E710 reader/writer engine, the ING-AC030 fully supports EPCglobal C1 Gen 2 ISO 18000-6C compliant electronic tags. It can be widely used in RFID solutions for asset management, smart warehousing, retail anti-theft, and other scenarios.
1.2 Operating Environment
This product is suitable for RFID solutions in asset management, smart warehousing, retail anti-theft, and other scenarios. It requires an environment with network coverage and no rain or dust.(Waterproofing is available for outdoor use.)
Product Features
High recognition rate: Advanced tag collision processing algorithm ensures fast reading speed and high efficiency.
Compact: Easy to install and deploy.
IP communication interface: RS232, TCP/IP
Transmit power: 0dBm~33dBm, adjustable, factory default 30dBm
Application scenarios: Widely used in asset management, smart warehousing, retail anti-theft, etc.
| Item |
Specification |
| Device Dimensions (mm) |
575 × 200 × 45 mm (±2) |
| Enclosure |
Acrylic front panel, aluminum alloy housing |
| Net Weight |
3.66 kg |
| Antenna |
Directional circularly polarized antenna |
| Installation |
Ceiling mount / top mount / side mount |
| Item |
Specification |
| Supported Protocols |
EPCglobal C1 Gen2, ISO 18000-6C, GB/T29768-2013 (optional) |
| Frequency Range |
865–868 MHz / 902–928 MHz (adjustable for different regions) |
| Frequency Hopping |
FHSS (Frequency Hopping Spread Spectrum) or fixed frequency |
| RFID Output Power |
Software adjustable, step size ±1 dB, up to 33 dBm |
| RFID Reading Distance |
>7 m (depending on tag and environment) |
| RFID Reading Speed |
Peak inventory speed >700 tags/s |
| Tag Buffer |
Up to 10,000 tags @ 96-bit EPC |
| RSSI Detection |
Supported |
| Human Body Sensor |
Optional |
| Entry/Exit Infrared Detection |
Optional |
| Light Alarm |
Standard |
| Buzzer |
Standard |
| Power Supply |
Adapter: AC 100–240 V, 50–60 Hz / DC Output 12V 3A DC Direct Supply: 12–24 V / 3A |
| Power Consumption |
5–20 W |
| Communication Protocols |
RS-232, TCP/IP, HTTP/HTTPS, MQTT |
| Hardware Interfaces |
RS-232, RJ45 |
| Optional Interfaces |
PoE (IEEE 802.3at), Wi-Fi, 4G |
| Supported Languages |
C#, Java |
| Supported Platforms |
Linux, Android, Windows, Kylin, UnionTech, HarmonyOS |
| Item |
Specification |
| Operating Temperature |
-20°C to +55°C |
| Storage Temperature |
-20°C to +85°C |
| Operating Humidity |
5%–95% RH (non-condensing) |
| Item |
Quantity |
| RFID Reader Host |
1 |
| Power Adapter |
1 |
| Certificate of Conformity |
1 |
